Operations / TLS inspection

Inspect routed TLS traffic.

SSLInspectingRouter runs on a Linux gateway and gives you visibility into authorized HTTP and HTTPS traffic: capture, inspect, route, rewrite, and export flows from one focused dashboard.

View on GitHub How it works

HTTP/HTTPS MITM SQLite logging WireGuard / Tor PCAP export

Feature set

A focused toolkit for controlled traffic inspection.

Built for lab gateways and authorized networks where traffic visibility matters more than decoration.

Transparent gateway interception

Redirect client HTTP and HTTPS flows with iptables NAT while the Linux host acts as the default gateway.

Dynamic TLS certificates

Acts as a local CA and generates host certificates on demand for HTTPS inspection.

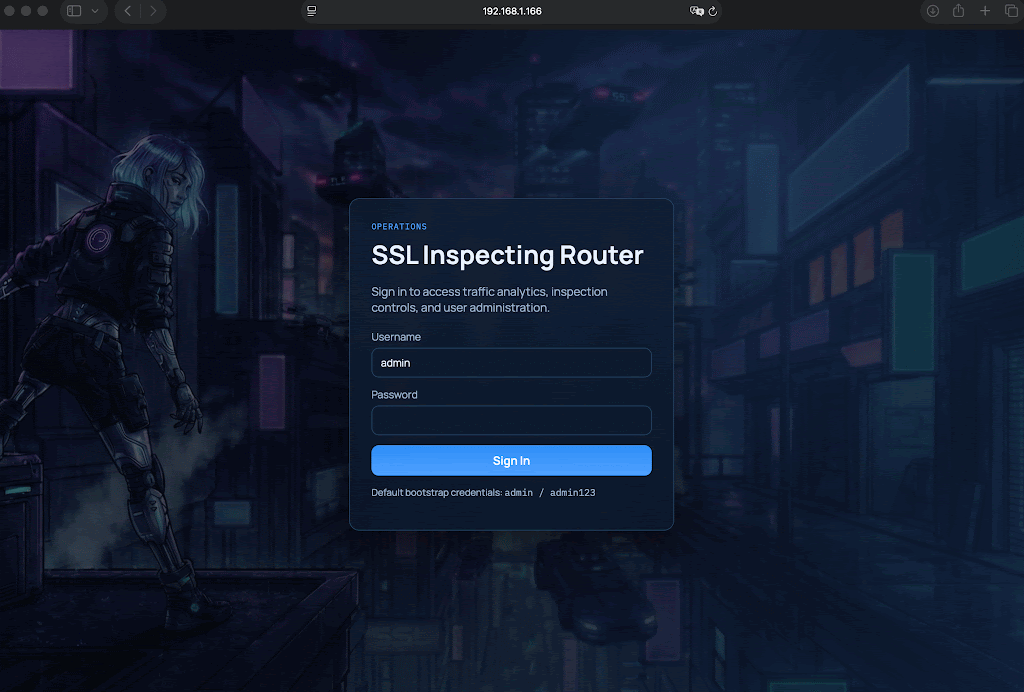

Real-time dashboard

Inspect traffic, manage policy, control egress, and operate runtime settings from a web UI.

Full traffic capture

Store request and response details in SQLite, with optional truncation or body artifact storage.

Response rewrites

Modify HTTP and HTTPS responses on the fly using JSON rewrite rules with automatic reload.

WireGuard or Tor egress

Switch outbound traffic through a WireGuard tunnel or Tor SOCKS5 from the Control Center.

PCAP for Wireshark

Export decrypted traffic into PCAP format for deeper offline packet analysis.

Policy-first controls

Drop or bypass domains, IPs, and CIDRs, or run allowlist mode to inspect traffic only from selected source IP addresses.

Architecture

Traffic flows through a simple gateway path.

Clients use the Linux host as their default gateway. The router redirects HTTP and HTTPS locally, decrypts where configured, processes traffic, and forwards it upstream.

Client traffic arrives

HTTP on port 80 and HTTPS on port 443 are redirected by iptables into local handlers.

Router inspects

Traffic can be decrypted, logged, matched against policies, rewritten, or bypassed.

Upstream resumes

Requests are forwarded directly, through WireGuard, or through Tor depending on runtime egress mode.

Install & run

# Install Go for your distro first, then clone
git clone https://github.com/dmitryporotnikov/SSLInspectingRouter.git
cd SSLInspectingRouter

# Enable forwarding, check dependencies, build binary
sudo ./scripts/setup.sh

# Start the router with the dashboard on port 3000
sudo ./sslinspectingrouter -web :3000

# Open in your browser
http://<router-ip>:3000

# Default bootstrap credentials — change immediately
admin / admin123

Responsible use

Built for networks you own and control.

SSLInspectingRouter performs TLS/SSL man-in-the-middle interception. Use it only in authorized labs, personal networks, test benches, or corporate environments with proper consent and governance.

Trusted networks only Protect traffic.db Bind dashboard carefully Rotate default credentials

Policy Studio

Inspection togglePause or resume traffic inspection from the dashboard.

Drop / bypass listsApply domain, IP, or CIDR policies at runtime.

Rewrite rulesCreate managed JSON response rewrite policies.

Egress routingEnable WireGuard or Tor with mutually exclusive controls.

GET /api/v1/status 200 OK

API v1

Script the same controls exposed in the UI.

The backend exposes a versioned API for health, auth, runtime status, policies, traffic, rewrites, and admin users.

Public

GET/api/v1/health

POST/api/v1/auth/login

Operations

GET/api/v1/status

PUT/api/v1/status

GET/api/v1/traffic

DELETE/api/v1/traffic

Policy

GET/api/v1/policy

PUT/api/v1/policy

POST/api/v1/rewrites

DELETE/api/v1/rewrites/{id}

Use cases

Practical use cases, no magic.

Use SSLInspectingRouter when you need realistic routed traffic behavior plus application-layer visibility.

Security labs

Observe, document, and export decrypted HTTP/HTTPS flows in an isolated lab environment.

QA and debugging

Reproduce client traffic, inspect payloads, and test response rewrites without changing application code.

Routing experiments

Compare direct, WireGuard, and Tor egress behavior while retaining dashboard visibility.

Open source

Run the inspection router on your own Linux gateway.

Clone the repository, run the setup script, start the web dashboard, and begin observing authorized traffic from a single Linux gateway.

Open repository Copy quick start
